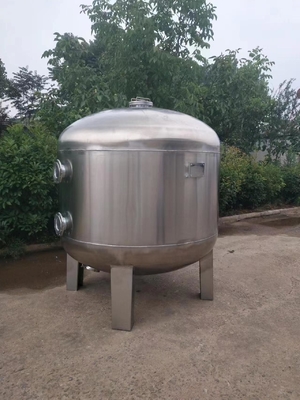

Stainless Steel Carbon Shallow Sand Filter Self Cleaning Water Filtration Solution

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Pre-treatment For Producing Purified Water, Boiler Feedwater, Industrial Process Water, And Drinking Water. Material Stainless Steel, Carbon Steel, Fiberglass
Purpose Production Of Purified Water, Boiler Feedwater, Industrial Process Water, And Drinking Water Filtration System Product Information Quartz Sand Filtration, Activated Carbon Filtration, Manganese Sand Filter, Shallow Bed Sand Filtration, Self-cleaning Filtration, Precision Filtration
Brand Tonglida
Highlight

shallow sand filter self cleaning

,

stainless steel quartz sand filter

,

stainless steel shallow sand filter
Leave a Message
Product Description





Product Description:

Filtration System: High-Efficiency Water Filtration and Purification

The filtration system is composed of multiple filters, including the quartz sand filter, activated carbon filter, manganese sand filter, shallow bed sand filter, self-cleaning filter, and precision filter. These filters come with different filter media and cartridges that vary in degrees of precision. Users can select the appropriate filters based on their specific needs.

Through the system's high-pressure filtration process, the filtration system is effective in removing suspended solids, organic matter, colloidal particles, and other impurities from turbid water, while also eliminating odors and colors. The end-result is high-quality purification and filtration of water.

Because of its effective and reliable capabilities, this filtration equipment is widely used across various industries such as power, electronics, beverages, tap water treatment, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, and municipal engineering, and is suited for treating industrial water, domestic water, circulating water, and wastewater.

Project Name Unit φ200 φ300 φ400 φ500 φ600 φ800 φ1000 φ1200 φ1400 φ1400 φ1500 φ1600 φ1800 φ2000 φ2200
Filter processing t/h 0.5 1 2 4 6 8-10 12-16 20-25 30 35 40 50 60 75-80 100
Working pressure MPa 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Operating temperature 0C 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40
Filter area m2 0.03 0.07 0.13 0.2 0.28 0.5 0.785 1.13 1.54 1.54 1.77 2.01 2.54 3.14 3.8
Filter layer height mm 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1300 1300 1300
Total height mm 1600 1800 1800 2200 2200 2400 2500 2600 2700 2700 2800 2900 3200 3400 3600
Raw water inlet diameter mm 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200
Clean water outlet diameter mm 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200
Backwash water inlet diameter mm 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200
Compressed air inlet diameter mm               25 25 25 32 32 32 32 32
Water drainage diameter for normal washing mm 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200
Backwash water drainage diameter mm 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200
Equipment weight kg 235 330 415 650 800 1300 2047 2849 3549 4090 4690 5800 6680 8530 9600



Features:

The preparation process for producing high-quality water involves multiple steps, which are necessary in ensuring that the water is purified and safe for consumption. The pre-treatment stage plays a critical role in this process, particularly in the production of purified water, boiler feedwater, industrial process water, and drinking water.

The pre-treatment stage entails the removal of suspended solids, organic matter, and other impurities in the water. This is achieved through various processes, such as filtration, sedimentation, and chemical treatment. These processes help to improve the overall purity and quality of the water before it moves on to the next stage of treatment.

The production of purified water, boiler feedwater, industrial process water, and drinking water is essential in various industries, including food and beverage, pharmaceutical, and power generation. As such, the pre-treatment stage plays a crucial role in ensuring that the water meets the required quality standards.

With effective pre-treatment, the water can be purified to the desired quality, making it safe and suitable for the intended application. Therefore, the pre-treatment stage is a critical component of the water treatment process, and it should be given significant consideration in any water treatment plant.



Technical Parameters:

Efficient filtration is achieved by selecting different filter media to effectively eliminate impurities such as suspended solids, organic matter, colloidal particles, microorganisms and enhance the water quality to meet on-site filtration requirements.



Biological purification further aids in degrading the organic matter and harmful substances in water to enhance the purification effect and achieve better water quality.

Applications:

Water filtration is a crucial process in various industries. It involves removing impurities and contaminants from different sources of water. There are several types of water filtration systems suitable for various industries. Industrial process water, such as heat exchange station water and nozzle protection water, requires filtration to ensure optimal performance and efficiency of industrial processes.

Industries such as steel, metallurgy, papermaking, power generation, petrochemicals, and food, as well as air conditioning systems, require water filtration for their circulating water. This filtration helps to maintain a clean, healthy, and efficient system that is free of impurities and contaminants.

Raw water treatment involves treating the water from surface water, rivers, lakes, and seawater before it is used. Filtration is a vital part of raw water treatment, as it removes the impurities and contaminants that can pose a danger to humans and animals.

Irrigation filtration is another important type of water filtration system suitable for agricultural fields, parks, municipal water supplies, and golf courses. In these areas, water filtration helps to remove sediment, chlorine, and other contaminants that can affect the quality of the irrigation water.

For aquaculture, swimming pools, and water parks, water filtration is essential to maintain a clean and safe water environment. Filtration systems help to remove impurities and harmful contaminants that can impact the health of fish, aquatic animals, and swimmers.

Finally, water filtration systems are suitable for various industries, such as power, electronics, beverages, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, and municipal engineering. These systems are designed to handle different types of water, such as industrial water, domestic water, circulating water, and wastewater, and ensure optimal water quality and safety.
