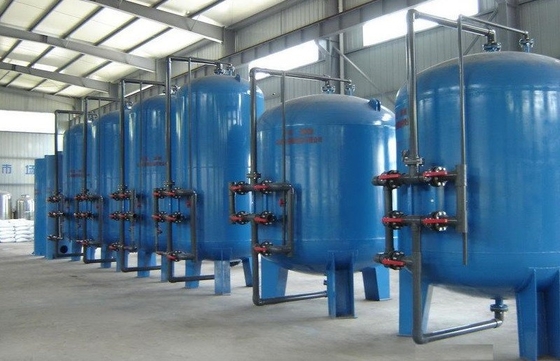

Water Filtration Precision High Rate Sand Filter 20-25 T/H Stainless Steel / Carbon Steel / Fiberglass

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Pre-treatment For Producing Purified Water, Boiler Feedwater, Industrial Process Water, And Drinking Water. Material Stainless Steel, Carbon Steel, Fiberglass
Brand Tonglida Product Information Quartz Sand Filtration, Activated Carbon Filtration, Manganese Sand Filter, Shallow Bed Sand Filtration, Self-cleaning Filtration, Precision Filtration
Purpose Production Of Purified Water, Boiler Feedwater, Industrial Process Water, And Drinking Water Filtration System
Highlight

fiberglass high flow sand filter

,

fiberglass high rate sand filter

,

25 t/h high flow sand filter
Leave a Message
Product Description





Product Description:

The filtration system comprises of different types of filters such as quartz sand filter, activated carbon filter, manganese sand filter, shallow bed sand filter, self-cleaning filter, and precision filter. Users can choose from a range of filter media and cartridges based on their accuracy requirements. With a specified pressure, the filtration system can efficiently remove dissolved solids, organic matter, colloidal particles, and impurities from turbid water. Additionally, it can get rid of unpleasant odors and color, leading to high-quality water filtration and purification.

This filtration equipment serves various industries such as power, electronics, beverages, tap water treatment, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, municipal engineering, and other processes involving industrial water, domestic water, circulating water, and wastewater treatment. It is highly versatile and can be customized for various purposes.

Project Name φ200 φ300 φ400 φ500 φ600 φ800 φ1000 φ1200 φ1400 φ1400 φ1500 φ1600 φ1800 φ2000 φ2200 Unit
Filter processing 0.5 1 2 4 6 8-10 12-16 20-25 30 35 40 50 60 75-80 100 t/h
Working pressure 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 MPa
Operating temperature 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 0C
Filter area 0.03 0.07 0.13 0.2 0.28 0.5 0.785 1.13 1.54 1.54 1.77 2.01 2.54 3.14 3.8 m2
Filter layer height 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1300 1300 1300 mm
Total height 1600 1800 1800 2200 2200 2400 2500 2600 2700 2700 2800 2900 3200 3400 3600 mm
Raw water inlet diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Clean water outlet diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Backwash water inlet diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Compressed air inlet diameter               25 25 25 32 32 32 32 32 mm
Water drainage diameter for normal washing 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Backwash water drainage diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Equipment weight 235 330 415 650 800 1300 2047 2849 3549 4090 4690 5800 6680 8530 9600 kg



Features:

Pre-treatment is essential for the production of various types of water, such as purified water, boiler feedwater, industrial process water, and drinking water. This process involves several techniques and methods aimed at removing impurities and contaminants from the water source before it is utilized for its intended purpose.

Purified water, for example, must be free of any particles, ions, or bacteria that may adversely affect its quality and intended use. Therefore, pre-treatment may involve filtration, sedimentation, and disinfection techniques to rid the water of these impurities. Similarly, industrial process water and boiler feedwater require a modified pre-treatment process to minimize the risk of damaging process equipment and optimizing energy efficiency.

Pre-treatment for drinking water is critical to ensure that the water delivered to consumers meets strict regulatory standards and is safe for human consumption. In addition to filtration and disinfection, this process may also involve the addition of chemicals such as fluoride or chlorine for added protection against waterborne diseases and other health risks.

Overall, pre-treatment plays a vital role in the production of high-quality water for various applications. It is an essential step in water treatment that helps improve water quality and ensure its safe use for human consumption and other industrial processes.



Technical Parameters:

Efficient filtration is a critical aspect of water purification systems. On-site filtration requirements can be achieved through the use of various filter media to effectively remove impurities like suspended solids, organic matter, colloidal particles, microorganisms, and improve the overall quality of water.

Biological purification is an essential step in enhancing the purification effect of water. It involves further degradation of organic matter and harmful substances in water, resulting in the removal of pollutants and the overall improvement of water quality.

Backwash regeneration plays a vital role in the maintenance of water purification systems. By going through the backwashing and regeneration process, the filtering performance of the quartz sand can be restored. This feature enables continuous water purification and ensures that impurities are consistently removed from the water supply.

Another important feature of water purification systems is space-saving design. They typically have compact structures and small footprints that effectively save space while still achieving efficient water filtration and purification.

Easy installation is another benefit of using a water purification system. It is simple to operate and install, and it can be directly connected to the inlet and outlet water pipes for immediate use. With a long service life, the system also helps reduce operating costs.

Lastly, water purification systems exhibit strong adaptability, making them suitable for different water qualities and water quantities. This feature ensures that the water purification system is versatile and can be efficiently used in various settings.



Applications:

Filtration of industrial process water is necessary for various purposes, such as nozzle protection and heat exchange station water. This helps to maintain the quality of the water being used in such processes.

Furthermore, filtration of industrial circulating water is important for industries involved in steel, metallurgy, papermaking, power generation, petrochemicals, food, and air conditioning systems. This is crucial to ensure the efficient functioning and longevity of the equipment involved.

Raw water treatment is also a major area where filtration is necessary. This includes surface water from rivers, lakes, and even seawater. It is essential to filter out impurities and contaminants before the water can be used for various applications.

Irrigation filtration is another important aspect of water treatment, especially in agricultural fields, parks, municipal water supplies and golf courses. Filtration helps to ensure that the water being used is free from debris and harmful chemicals.

Water filtration is also necessary for aquaculture, swimming pools, and water parks. This not only helps to keep the water clean, but also prevents the growth of harmful bacteria and pathogens.

Finally, filtration systems are suitable for various industries such as power, electronics, beverages, tap water treatment, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, and municipal engineering, involving industrial water, domestic water, circulating water, and wastewater treatment. These systems are necessary to improve the quality of water and ensure the safety of its usage.
