Chemical Industry Condensate Water Recovery Device For 1-100T/H Capacity

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Anti-cavitation, Energy-saving, Environmentally Friendly Drive Mode Electric, Pneumatic
Working Pressure 0.1-1.6MPa Material Carbon Steel, Stainless Steel
Control Mode Fully Automatic Control, PLC Control Recovery Capacity 1-100T/H
Certifications ISO9001 Quality System Certification Application Fields Papermaking, Chemical Industry, Food Industry, Pharmaceuticals, Etc.
Highlight

industry condensate water recovery device

,

chemical industry condensate water recovery device

,

industry condensate water recovery system
Leave a Message
Product Description





Product Description:

The condensate water recovery device is flexible, offering both steam-driven and electric-driven options for different user requirements. The recovered condensate water can be conveniently directed back into the boiler or routed to a specified location.

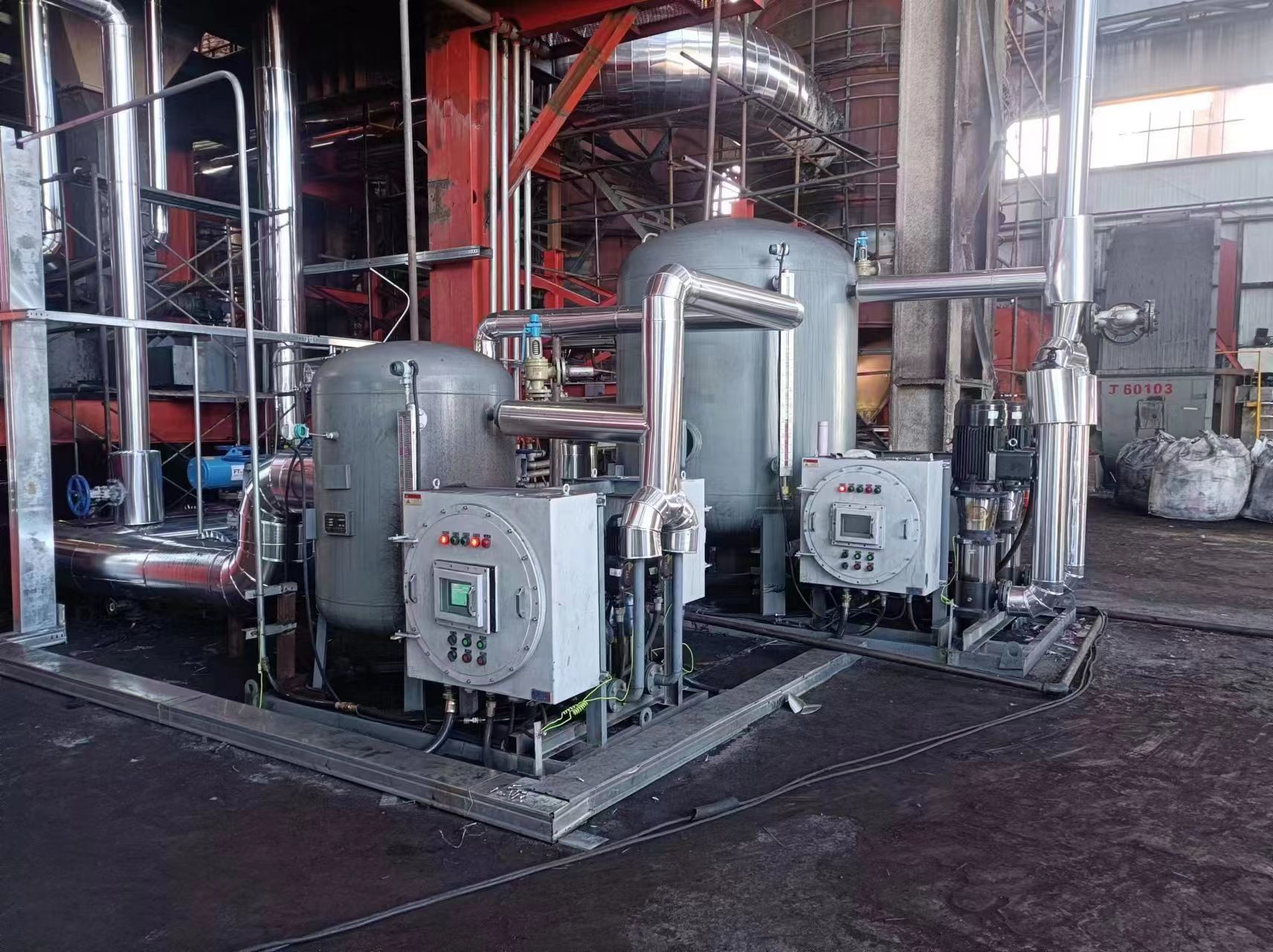

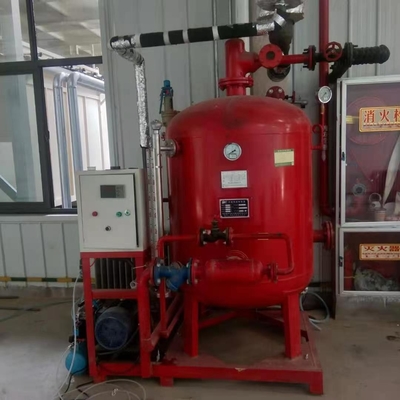

The primary components of the device include a dedicated condensate water recovery pump, motor, recovery tank, cavitation elimination device, liquid level sensor, magnetic flip liquid level gauge, pressure gauge, filter, pressure regulating valve, blowdown valve, control panel, and more.

Steam condensate water is channeled into the recovery tank through a steam trap, separating steam and water. When the liquid level sensor detects a high liquid level, it sends a signal to activate the condensate water recovery pump. High-temperature condensate water and small amounts of secondary steam are processed through the device's cavitation elimination device and filter system, then channelled into the designated location.

If the liquid level sensor detects a low liquid level, it sends a signal to shut off the condensate water recovery pump. The device can operate in fully automatic control mode with dual pumps alternating and operating in backup mode as required. The device is simple to use and requires only basic power connectivity to begin operation.

Model number Recovery volume Equipment dimensions Weight Tank diameter
TLD-1T/H-A 1T/H 1300*500*1600 360kg 450
TLD-2T/H-A 2T/H 1600*700*1600 550kg 500
TLD-4T/H-A 4T/H 1500*600*1700 750kg 550
TLD-6T/H-A 6T/H 1750*800*1700 880kg 600
TLD-8T/H-A 8T/H 1800*900*2100 900kg 800
TLD-10T/H-A 10T/H 1900*1100*2200 980kg 1000
TLD-2T/H-B 2T/H 2300*500*1900 450kg 350
TLD-4T/H-B 4T/H 2700*1100*2000 800kg 450
TLD-6T/H-B 6T/H 2900*1200*2000 880kg 550
TLD-8T/H-B 8T/H 3200*1300*2100 1000kg 800



Features:

Anti-cavitation: This technology is effective in preventing cavitation, which is a phenomenon that occurs when the pressure of a liquid falls below its vapor pressure causing the formation of vapour bubbles. These bubbles collapse with extreme force, resulting in damage to equipment and inefficiencies in the system. With the anti-cavitation technology, the system is protected from these damaging effects, ensuring smooth and efficient operation.

Energy-saving: By leveraging the latest technologies, our products have been designed to be highly energy-efficient. This means that they consume less energy while delivering the same or even better performance as traditional appliances. This results in a significant reduction in energy bills, increased savings and a more sustainable future.

Environmentally friendly: We pride ourselves on being environmentally conscious and our products reflect this commitment. Our design team has made use of recycled materials and other sustainable resources to reduce the impact on the environment. In addition, the products have been designed to have a minimal carbon footprint, further reducing their environmental impact.



Applications:

This product has a wide range of applications as it is utilized in various industrial sectors such as papermaking, chemical, petroleum, printing and dyeing, textile, brewing, rubber, and more. Specifically, it is employed in steam heating systems for closed-loop condensate water recovery.

Apart from its use in industrial settings, this product can also be installed in civil buildings such as hotels and hospitals for steam condensate water recovery. With its efficient mechanism, it effectively converts the condensate water generated by the indirect heat exchange system into closed-loop recovery. This makes it a valuable replacement for the conventional open condensate water tanks.



Support and Services:

The Condensate Water Recovery Device is designed to recover and recycle the water generated by air conditioning systems. Our technical support team is available to assist with any installation or maintenance questions. Additionally, we offer regular maintenance services to ensure optimal performance of the device.  Contact us for more information on our technical support and services for the Condensate Water Recovery Device.
