Energy Saving Condensate Water Recovery System Fully Automatic Control Stainless Steel Device

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Anti-cavitation, Energy-saving, Environmentally Friendly Drive Mode Electric, Pneumatic
Working Pressure 0.1-1.6MPa Control Mode Fully Automatic Control, PLC Control
Certifications ISO9001 Quality System Certification Application Fields Papermaking, Chemical Industry, Food Industry, Pharmaceuticals, Grain And Oil Processing, Rubber Industry, Cotton Spinning, Printing And Dyeing, Wood Industry, And Other Industrial Enterprises With Steam Heating Systems For Closed-loop Condensate Water Rec
Material Carbon Steel, Stainless Steel Recovery Capacity 1-100T/H
High Light

1.6MPa condensate water recovery system

,

condensate water recovery system fully automatic

,

automatic steam condensate recovery system
Leave a Message
Product Description

Product Description:

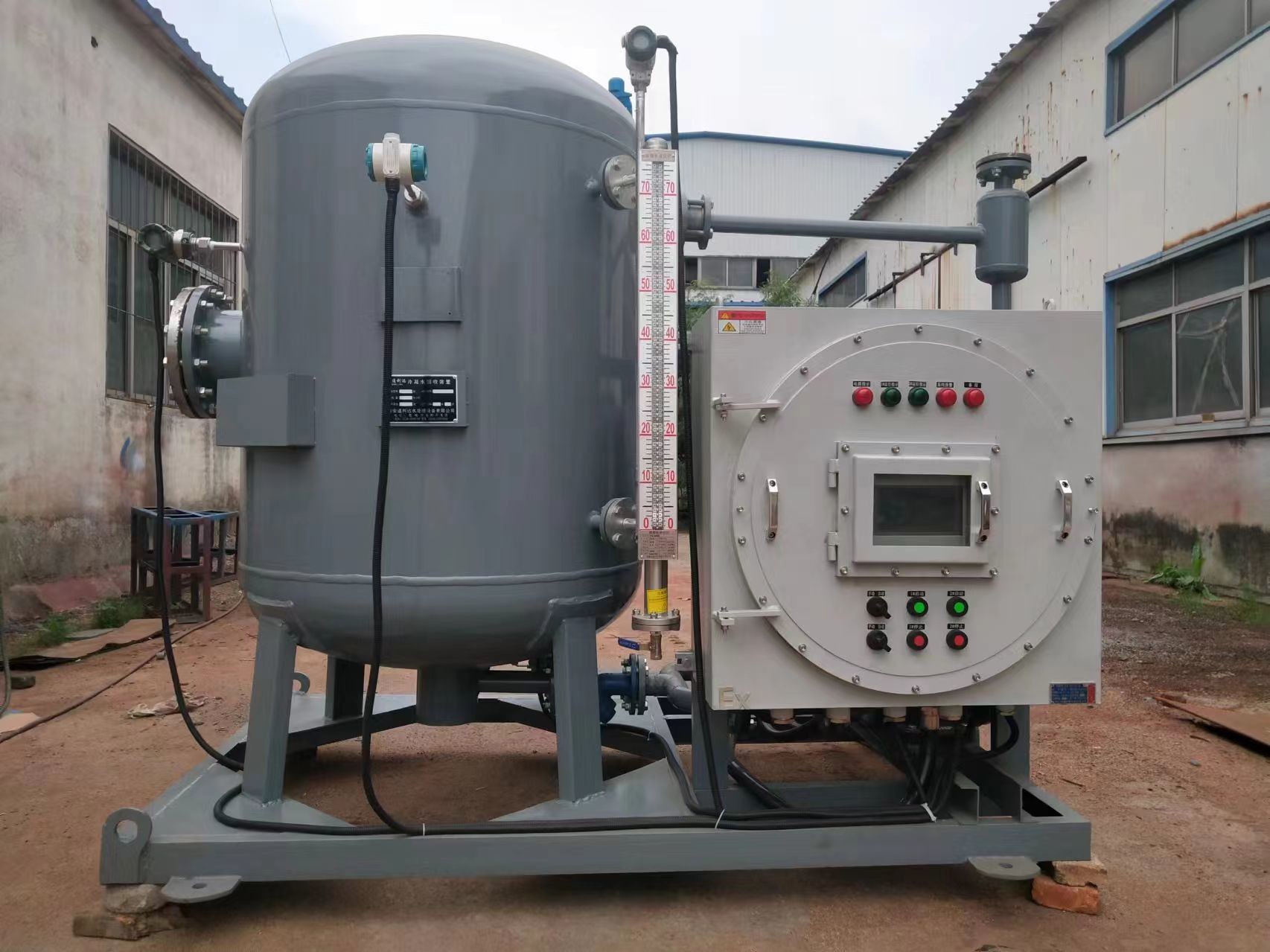

The condensate water recovery device is specially designed to meet different user requirements, where it can be electric-driven or steam-driven. The recovered condensate water can be directly returned to the boiler or to a particular location, as specified by the user. The device mainly comprises a condensate water recovery pump, motor, recovery tank, liquid level sensors, and other important components such as cavitation elimination device, magnetic flip liquid level gauge, filter, pressure regulating valve, blowdown valve, and control panel.

The steam condensate water is allowed to enter the tank through a steam trap, which helps to separate steam and water. When the liquid level in the tank reaches a certain level, the liquid level sensor installed in the device sends out a high-level signal to the control panel for action. The control panel then activates the condensate water recovery pump, which transports condensed water, along with a small amount of secondary steam through the pump's cavitation elimination device and filter into the water tank. This process results in efficient steam condensate water recovery.

On the other hand, when the tank's liquid level sensor detects low liquid level, it sends out a low-level signal to the control panel, which shuts off the condensate water recovery pump. The condensate water recovery device operates in fully automatic control mode, where dual pumps operate in backup mode whenever necessary. The device can be easily operated with the turn of a power switch.

Model number Recovery volume Equipment dimensions Weight Tank diameter
TLD-1T/H-A 1T/H 1300*500*1600 360kg 450
TLD-2T/H-A 2T/H 1600*700*1600 550kg 500
TLD-4T/H-A 4T/H 1500*600*1700 750kg 550
TLD-6T/H-A 6T/H 1750*800*1700 880kg 600
TLD-8T/H-A 8T/H 1800*900*2100 900kg 800
TLD-10T/H-A 10T/H 1900*1100*2200 980kg 1000
TLD-2T/H-B 2T/H 2300*500*1900 450kg 350
TLD-4T/H-B 4T/H 2700*1100*2000 800kg 450
TLD-6T/H-B 6T/H 2900*1200*2000 880kg 550
TLD-8T/H-B 8T/H 3200*1300*2100 1000kg 800



Features:

Anti-cavitation, energy-saving, and environmentally friendly - this phrase summarizes the excellent features of this product. It helps to prevent damage caused by cavitation, saves energy, and promotes environmental sustainability by reducing harmful effects on nature. The product is designed to cater to the needs of customers who are looking for high-quality, reliable, and eco-friendly solutions.

A key advantage of this product is its anti-cavitation properties. Cavitation can cause extensive damage to machines and equipment, leading to increased maintenance costs and downtime. However, with this product, users can minimize such damage and ensure that their operations run smoothly and efficiently.

Another standout feature of this product is its energy-saving capabilities. By reducing energy consumption, users can achieve significant cost savings while also contributing to environmental conservation. The product is a great investment for businesses looking to reduce their carbon footprint and promote sustainable practices.

Finally, this product is also environmentally friendly. It is made using materials that are non-toxic and recyclable, and it is designed to minimize waste and pollution. By choosing this product, users can show their commitment to sustainable practices and take a step towards a greener future.



Technical Parameters:

Anti-cavitation: The product employs an innovative device to eliminate cavitation and prevent pump cavitation. This allows the condensate water recovery system to operate under high temperature and sealed conditions.

Energy-saving and environmentally friendly: The product completely recovers and utilizes condensate water. It increases the temperature of the boiler feed water and improves boiler efficiency, resulting in a fuel savings of approximately 20%. Additionally, it reduces water usage by approximately 20-80%, lowers investment and operating costs of water treatment equipment, and decreases thermal and noise pollution. The system also reduces emissions of pollutants such as smoke, dust, SO2, NOx from secondary steam and negates environmental pollution.

High automation: The product incorporates a range of measures such as automatic control of pump operation, automatic switching between dual pumps, and automatic alarms. This ensures an automated, closed-loop water return operation.

Compact size: The product is compact and integrated, occupying less space, and can be transported, installed, and used with ease. This reduces investment costs in civil construction.

Simple structure: It is comprised of a number of components including flash tanks, rapid condensate water discharge devices, pressure balance devices, liquid level sensors, purifiers, cavitation elimination devices, and water storage tanks. The pressure of the balance device in the water storage tank is typically below 0.1MPa. The system can be programmed with a range of intelligent controls such as automatic opening and closing, automatic alarms, automatic pressure regulation, and automatic switching of condensate water pumps. Moreover, the equipment has excellent overall integrity and is straightforward to install and maintain.

Flexible installation: It can be installed at the beginning of the return water pipeline or according to the steam-using equipment layout. It can also be installed underground.



Applications:

There are a variety of industries which rely on steam heating systems that utilize closed-loop condensate water recovery. These industries include papermaking, chemical processing, petroleum refinement, printing and dyeing, textile production, brewing, rubber manufacturing, and more.

The usage of closed-loop condensate water recovery allows these industrial processes to be more environmentally efficient by recycling water which would have otherwise gone to waste.

However, the benefits of closed-loop condensate water recovery are not restricted to industrial applications. This technology can also be implemented in various civil buildings, such as hotels and hospitals.

The use of this system allows for the convenient and effective conversion of condensate water generated by indirect heat exchange into closed-loop recovery. This system replaces the conventional open condensate water tanks which are less efficient and environmental friendly.
