0.1-1.6MPa Stainless Steel Condensate Water Recovery Device ISO9001for 1-100T/H Capacity

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Anti-cavitation, Energy-saving, Environmentally Friendly Working Pressure 0.1-1.6MPa
Recovery Capacity 1-100T/H Material Carbon Steel, Stainless Steel
Drive Mode Electric, Pneumatic Control Mode Fully Automatic Control, PLC Control
Certifications ISO9001 Quality System Certification Customization Customization Supported
High Light

steel condensate water recovery device

,

1.6mpa condensate water recovery device

,

1.6mpa condensate water recovery system
Leave a Message
Product Description





Product Description:

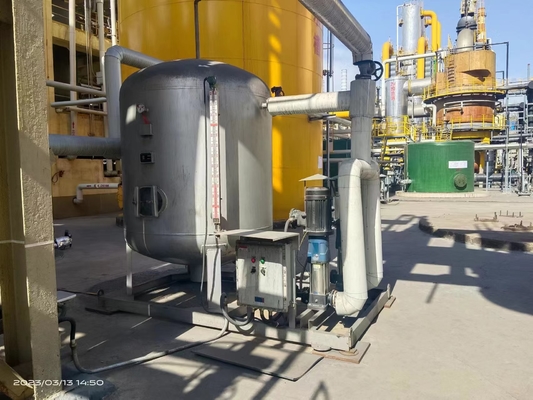

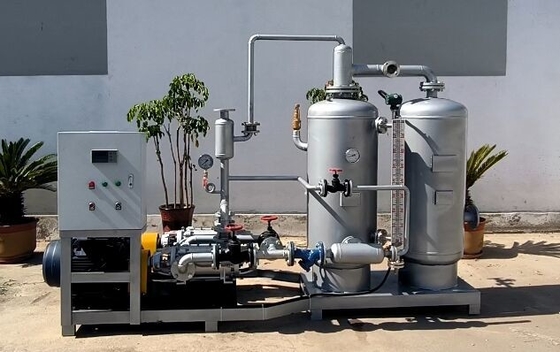

The Condensate Water Recovery Device

The condensate water recovery device can operate in a steam-driven or electric-driven mode, depending on the user's requirements. The recovered condensate water can either be returned directly to the boiler or to a specific location designated by the user.

The device comprises several components, such as a dedicated condensate water recovery pump, motor, recovery tank, cavitation elimination device, liquid level sensor, magnetic flip liquid level gauge, pressure gauge, filter, pressure regulating valve, blowdown valve, control panel, and other devices.

Steam condensate water flows into the tank via a steam trap, where it undergoes separation of steam and water. A high liquid level in the tank activates the liquid level sensor, which sends a high-level signal to the control panel. The condensate water recovery pump is then activated by the control panel.

The cavitation elimination device and filter in the condensate water recovery pump transport high-temperature condensate water and a small amount of secondary steam into the water tank or to a specific location designated by the user. This process completes the entire steam condensate water recovery process.

During the recovery process, if the liquid level sensor detects a low liquid level in the tank, it sends a low-level signal to the control panel, which deactivates the condensate water recovery pump. The device operates in fully automatic mode, with dual pumps operating in backup mode and automatically switching between them. The user can activate the device by simply turning on the power.



Model number TLD-1T/H-A TLD-2T/H-A TLD-4T/H-A TLD-6T/H-A TLD-8T/H-A
Recovery volume 1T/H 2T/H 4T/H 6T/H 8T/H
Tank diameter 450 500 550 600 800
Equipment dimensions 1300*500*1600 1600*700*1600 1500*600*1700 1750*800*1700 1800*900*2100
Weight 360kg 550kg 750kg 880kg 900kg
Model number TLD-10T/H-A TLD-2T/H-B TLD-4T/H-B TLD-6T/H-B TLD-8T/H-B
Recovery volume 10T/H 2T/H 4T/H 6T/H 8T/H
Tank diameter 1000 350 450 550 800
Equipment dimensions 1900*1100*2200 2300*500*1900 2700*1100*2000 2900*1200*2000 3200*1300*2100
Weight 980kg 450kg 800kg 880kg 1000kg



Features:

Our product is designed to combat cavitation, which not only ensures optimal performance but also saves energy. By utilizing this technology, you can significantly reduce your energy consumption and costs, making it an environmentally friendly solution.

We aim to provide our customers with a product that is both efficient and sustainable. Our anti-cavitation technology achieves this goal by reducing the energy required to operate, resulting in a reduced carbon footprint and lower environmental impact.

If you're looking for a product that is both energy-saving and environmentally friendly, look no further. Our anti-cavitation technology is the perfect solution for those who want to reduce their energy consumption and environmental impact without sacrificing performance.



Technical Parameters:

Anti-cavitation

The product incorporates an innovative cavitation elimination device that prevents pump cavitation. This allows the condensate water recovery system to operate under high temperature and sealed conditions, resulting in improved system efficiency.


Energy-saving and environmentally friendly

The product is designed to be energy-saving and environmentally friendly. It fully recovers and utilizes condensate water, which increases the boiler feed water temperature, improves boiler efficiency, and results in fuel savings of approximately 20%. Additionally, water savings of approximately 20-80% can be achieved, reducing the investment and operating costs of water treatment equipment. Moreover, it reduces thermal pollution, noise pollution, and emissions of pollutants such as smoke, dust, SO2, NOx from secondary steam, and mitigates environmental pollution.


High automation

The product has a high degree of automation, utilizing measures such as automatic control of pump operation, automatic switching between dual pumps, and automatic alarms to achieve automated closed-loop water return operation.


Compact size

The product is compact and integrated, taking up less space than traditional systems. It is easy to transport, install, and use, reducing civil construction investment.


Simple structure

The product is composed of an integrated system that includes flash tanks, rapid condensate water discharge devices, pressure balance devices, liquid level sensors, purifiers, cavitation elimination devices, and water storage tanks. The system can achieve a series of intelligent program controls such as automatic opening and closing, automatic alarms, automatic pressure regulation, and automatic switching of condensate water pumps. The equipment has good overall integrity and is easy to install and maintain.


Flexible installation

The product can be installed at the beginning of the return water pipeline or according to the layout of steam-using equipment. It can even be installed underground for greater flexibility.



Applications:

The closed-loop condensate water recovery system is widely used in various industries that rely on steam heating systems, such as papermaking, chemical, petroleum, printing and dyeing, textile, brewing, and rubber. This innovative system is designed to recover and reuse condensate water efficiently and sustainably.

In addition to industrial enterprises, closed-loop condensate water recovery systems can also be applied in hotels, hospitals, and other civil buildings. It provides a convenient and effective way to convert the condensate water generated by the indirect heat exchange system into a closed-loop recovery.

This closed-loop condensate water recovery system replaces conventional open condensate water tanks, making it a viable and eco-friendly solution for steam condensate water recovery.
