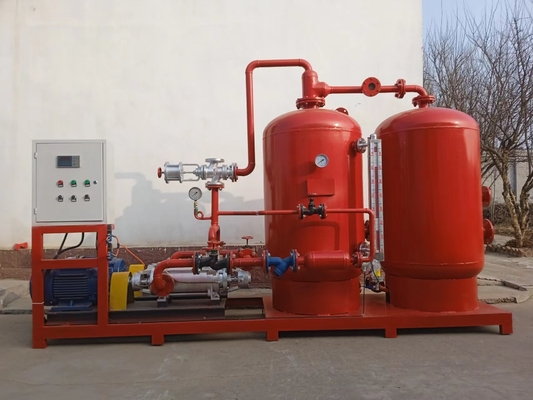

Carbon Steel PLC Electric Steam Condensate Water Recovery System 100T/H Capacity 360kg-1000kg

Product Description:

The condensate water recovery device can be designed to operate using steam-driven or electric-driven methods, depending on the specific needs of the user. This system has the ability to retrieve and recycle condensate water, which can then be reused for various applications. The recovered water can either be directed back into the boiler or any other designated location that the user specifies. The condensate water recovery device is comprised of several essential parts, including a dedicated condensate water recovery pump, motor, recovery tank, cavitation elimination device, liquid level sensor, magnetic flip liquid level gauge, pressure gauge, filter, pressure regulating valve, blowdown valve, control panel, and other important components.

Steam condensate water enters the tank via a steam trap where water and steam are separated. Once the liquid level sensor detects that the tank is full, it sends a signal to the control panel. The control panel will, in turn, respond by activating the condensate water recovery pump. The pump works by moving high-temperature condensate water and a small amount of secondary steam through the pump's cavitation elimination device and filter, and directing it to the designated location (such as the water tank or any specified location chosen by the customer). This completes the entire process of steam condensate water recovery.

The control panel also receives a low-level signal when the liquid level sensor detects a low liquid level in the tank. In response, the control panel will then shut off the condensate water recovery pump. The recovery device has the ability to operate in a fully automatic control mode, with dual pumps that operate in a backup mode and automatically switch between them. To operate the recovery device, simply turning on the power is all that is required.

Features:

Anti-cavitation, energy-saving, and environmentally friendly are three key terms that define a modern and sustainable approach to machinery and equipment.

Firstly, anti-cavitation refers to technology that prevents the formation of cavities or bubbles, which can lead to mechanical damage and performance reduction in hydraulic systems. By incorporating anti-cavitation designs, machines can operate at optimal levels for longer periods, reducing maintenance costs and enhancing overall efficiency.

Secondly, energy-saving technologies are fundamental to reducing carbon emissions and promoting sustainable practices. Machines that are designed with energy-saving features such as low-power motors, variable-speed drives, and automatic shutdown systems consume less power, resulting in significant energy savings and a reduced carbon footprint.

Lastly, environmentally friendly machinery and equipment are designed with sustainable materials, reduced toxicity, and minimal waste production. By adopting eco-friendly designs, machines can contribute to a greener and safer workplace, reducing the negative impact on the environment and promoting a healthier planet.

Applications:

The closed-loop condensate water recovery system is widely utilized in various industrial enterprises. The industries that frequently employ this system include papermaking, chemical, petroleum, printing and dyeing, textile, brewing, rubber, and others that require steam heating.

The main purpose of the closed-loop condensate water recovery system is to conserve water and energy by recycling the condensate water that would otherwise go to waste. The system works by recovering and using the heat energy contained in the condensate water, which helps reduce the need for additional steam production. In addition, the system can help prevent environmental pollution and reduce operating costs.

Besides industrial enterprises, this system can also be used in hotels, hospitals, and other civil buildings for steam condensate water recovery. It is a practical and convenient way to convert condensate water generated by the indirect heat exchange system into closed-loop recovery. Instead of using conventional open condensate water tanks, the closed-loop condensate water recovery system offers an efficient alternative, making it a valuable product for various industries and establishments.

Support and Services:

Our technical support team is available to assist with any questions or issues that may arise with the installation, operation, or maintenance of the device. Our services include:

• Technical support via phone or email
• Installation guidance
• Training on device operation and maintenance
• Repair and replacement services

Our team of experts is dedicated to ensuring the proper functioning and longevity of your Condensate Water Recovery Device. Please do not hesitate to reach out to us for any assistance.
