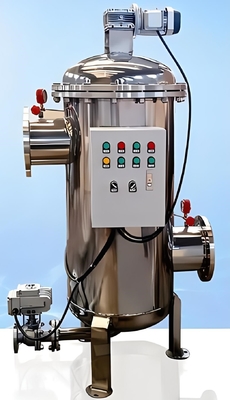

Industrial Process Shallow Bed / Activated Carbon Filter For Boiler Feedwater

Place of Origin Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Pre-treatment For Producing Purified Water, Boiler Feedwater, Industrial Process Water, And Drinking Water. Brand Tonglida
Material Stainless Steel, Carbon Steel, Fiberglass Product Information Quartz Sand Filtration, Activated Carbon Filtration, Manganese Sand Filter, Shallow Bed Sand Filtration, Self-cleaning Filtration, Precision Filtration
Place Of Origin Tai'an, Shandong
High Light

industrial activated carbon filter

,

industrial activated carbon sand filter

,

shallow bed activated carbon filter
Leave a Message
Product Description

Product Description:


The filtration system consists of quartz sand filter, activated carbon filter, manganese sand filter, shallow bed sand filter, self-cleaning filter, and precision filter. Different filter media and filter cartridges with varying degrees of precision can be selected according to the user's requirements. Under a certain pressure, the system effectively removes suspended solids, organic matter, colloidal particles, and other impurities from turbid water. It can also eliminate odors and colors, ultimately achieving high-efficiency filtration and purification of water quality.

This filtration equipment is widely used in various industries such as power, electronics, beverages, tap water treatment, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, municipal engineering, and other processes involving industrial water, domestic water, circulating water, and wastewater treatment.





Model number Inlet and outlet diameter Drain diameter Tank diameter Equipment height Motor power Flow rate
(mm) (mm) (m³/h)
DN40 DN40 DN25 219 700   18
DN50 DN50 DN25 219 700 0.18 20
DN65 DN65 DN25 273 1300 0.18 30
DN80 DN80 DN25 273 850 0.18 40
DN100 DN100 DN50 273 936 0.18 60
DN125 DN125 DN50 325 1018 0.37 100
DN150 DN150 DN50 325 111 0.37 150
DN200 DN200 DN50 426 1427 0.37 250
DN250 DN250 DN50 426 1685 0.37 400
DN300 DN300 DN50 530 2100 0.55 500
DN350 DN350 DN80 630 2085 0.55 750
DN400 DN400 DN80 600 2360 0.55 1000
DN450 DN450 DN100 600 2632   1200
DN500 DN500 DN100 700 2919   1500
DN600 DN600 DN100 800 3510   2100
DN700 DN700 DN200 900 4100   3000
DN800 DN80   1200     3800



Applications:

  1. Filtration of industrial process water, such as nozzle protection and heat exchange station water.
  2. Filtration of industrial circulating water in industries such as steel, metallurgy, papermaking, heat exchangers, power generation, petrochemicals, food, and air conditioning systems.
  3. Filtration for raw water treatment, including surface water, rivers, lakes, and seawater.
  4. Irrigation filtration for agricultural fields, parks, municipal water supplies, and golf courses.
  5. Water filtration for aquaculture, swimming pools, and water parks.
  6. Suitable for various industries such as power, electronics, beverages, tap water treatment, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, and municipal engineering, involving industrial water, domestic water, circulating water, and wastewater treatment.



Product Advantages:

  1. Efficient filtration: By meeting on-site filtration requirements, different filter media can be selected to effectively remove impurities such as suspended solids, organic matter, colloidal particles, microorganisms, and improve water quality.
  2. Biological purification: Further degradation of organic matter and harmful substances in water enhances the purification effect.
  3. Backwash regeneration: Through the backwashing and regeneration process, the filtering performance of the quartz sand can be restored, enabling continuous water purification.
  4. Space-saving: The compact structure and small footprint effectively save space.
  5. Easy installation: Simple operation and easy installation. It can be directly connected to the inlet and outlet water pipes for immediate use. It has a long service life, which helps reduce operating costs.
  6. Strong adaptability: Suitable for different water qualities and water quantities, exhibiting good adaptability.
