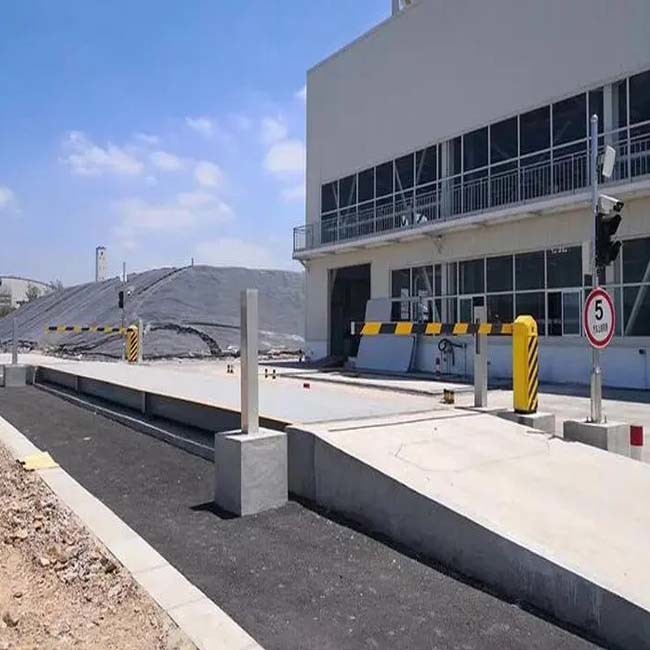

2m-4.5m Width Range Electronic Weighbridge With Automatic Vehicle Identification Features

Place of Origin Taian, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 2T-100T
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Automatic Vehicle Identification, Intelligent Voice And Digital Display Width Range 2m~4.5m
Origin Taian, Shandong Accuracy Class Class III
Brand Tonglida Length Range 4m~35m
Maximum Weighing Capacity 10t~200t
High Light

2m electronic weighbridge

,

2m computerized weighbridge

,

4.5m electronic weighbridge
Leave a Message
Product Description





Product Description:



An Introduction to Electronic Scales

An electronic scale is also known as an electronic weighbridge, which is a professional equipment used for weighing based on the principle of strain gauge measurement. It is a large-scale weighing tool that has become widely used in various industries. Our company specializes in offering electronic scales, mobile electronic scales, and electronic truck scales that are reliable and accurate in delivering measurements.

The Features of Our Electronic Scales

Our electronic scales are equipped with a host of advanced features like video surveillance, large-screen display, automatic vehicle identification, intelligent voice, traffic light barrier control, infrared grating positioning, and host computer systems. The integration of these systems achieves automatic and reliable collection of measurement data, automatic determination of tare weight, automatic guidance, automatic processing, and automatic control throughout the weighing process.

This greatly mitigates the risks and workload associated with manual operations, while enhancing the system's level of informatization and automation. We believe that our electronic scales can be a valuable asset for your business, providing accurate and reliable weighing data that is essential for decision-making and compliance with regulatory requirements.

How Electronic Scales Work

During operation, when a vehicle drives onto the platform, the weight of the vehicle is transferred to the weighing sensors through the load-bearing structure under the influence of gravity. This causes deformation in the elastic material of the sensors, resulting in an unbalanced state in the strain gauge bridge attached to the elastic material. The output signal from the strain gauge bridge is proportional to the weight of the vehicle. The signal is then amplified by a linear amplifier, converted into a digital signal through an A/D converter, processed by a processor, and displayed as weight data.



Features:



Automatic vehicle identification, intelligent voice and digital display.

Technical Parameters:



The system automatically collects data, eliminating the need for manual intervention. This enhances the accuracy and real-time nature of data collection.

The weighing process is accelerated, boosting production efficiency.

Standardized weighing procedures ensure that there are no loopholes and limit cheating possibilities.

Centralized management of truck scales reduces the number of scale operators, lightening the burden on the company, and streamlining the overall process.

The self-service man-machine interaction system replaces the weighbridge office, saving construction costs and also preventing human sabotage.

Remote operation of the scales allows for an unattended weighing process, improving working conditions for the operators and avoiding direct contact between drivers and operators.

Remote card reading using Ceramic RFID cards with anti-tampering features prevents cheating through card swapping or license plate manipulation. It also enhances vehicle weighing management.

Additional customizable features can be added based on enterprise requirements, allowing seamless integration with production and other systems.



Applications:



Logistics Industry

Logistics centers need to weigh incoming and outgoing goods. The use of electronic truck scales enables fast and accurate weighing, which not only improves the efficiency of the weighing process, but also enhances the overall productivity of the logistics industry. By streamlining the weighing process, logistics companies can reduce the time and resources needed to weigh goods, thereby improving their competitiveness in the market.

Freight Industry

Freight companies rely heavily on accurate weighing during the loading and unloading process. The use of electronic truck scales simplifies the process and reduces workload for the workers by eliminating the need for manual weighing. This not only saves time but also reduces the risk of human errors, ensuring that freight companies can maintain a high level of accuracy in their operations. As a result, the use of electronic truck scales has become an essential part of the modern freight industry.

Coal Industry

Weighing coal is a crucial part of the coal industry as it directly impacts the profitability of coal enterprises. The use of electronic truck scales enables efficient and accurate weighing of coal, which ensures that the proper amount of coal is transported and sold to customers. This not only helps to maintain the integrity of the coal industry but also helps to ensure that coal enterprises can remain profitable in the long run.

Building Materials Industry

The building materials industry also relies heavily on accurate weighing of transported materials. By utilizing electronic truck scales, building materials companies can improve efficiency and reduce labor and resource costs. This helps to increase productivity and profitability by streamlining the weighing process and reducing the time and resources necessary to weigh transported materials.

Chemical Industry

The chemical industry has a high demand for accurate weighing equipment for its raw materials. The use of electronic truck scales is especially important in this industry as it allows for precise and consistent weighing, which can help to reduce the risk of human error and enhance production efficiency. As such, electronic truck scales have become a crucial component in the chemical industry's manufacturing process.
