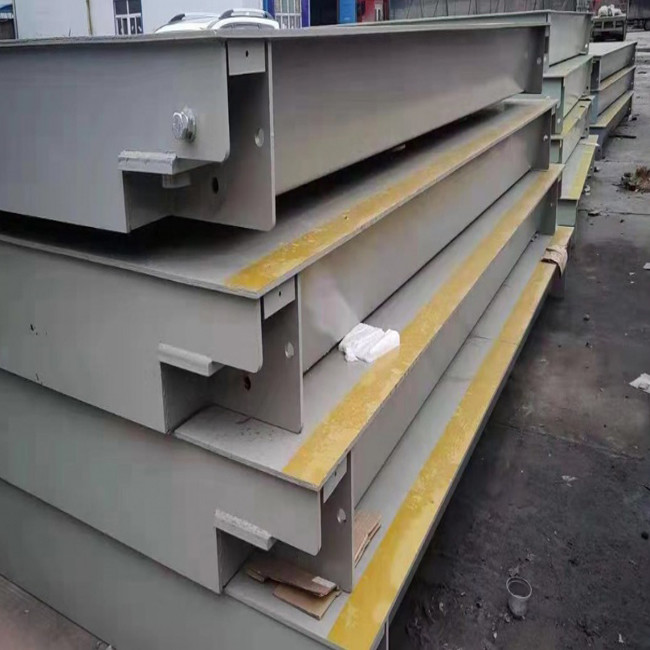

Class III Electronic Truck Scale With 10t~200t Capacity 4m~35m Length Range

Place of Origin Taian, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 2T-100T
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Automatic Vehicle Identification, Intelligent Voice And Digital Display Maximum Weighing Capacity 10t~200t
Length Range 4m~35m Brand Tonglida
Accuracy Class Class III Width Range 2m~4.5m
Origin Taian, Shandong
Highlight

class iii electronic truck scale

,

10t electronic truck scale

,

10t electronic lorry weighbridge
Leave a Message
Product Description





Product Description:



An electronic scale, also referred to as an electronic weighbridge, is a piece of professional equipment that is commonly used for weighing tasks, based upon the principle of strain gauge measurement. This equipment is generally used for large-scale weighing projects.

Our company is primarily focused on offering specialized electronic scales, mobile electronic scales and also electronic truck scales to cater to a wide range of customer needs.

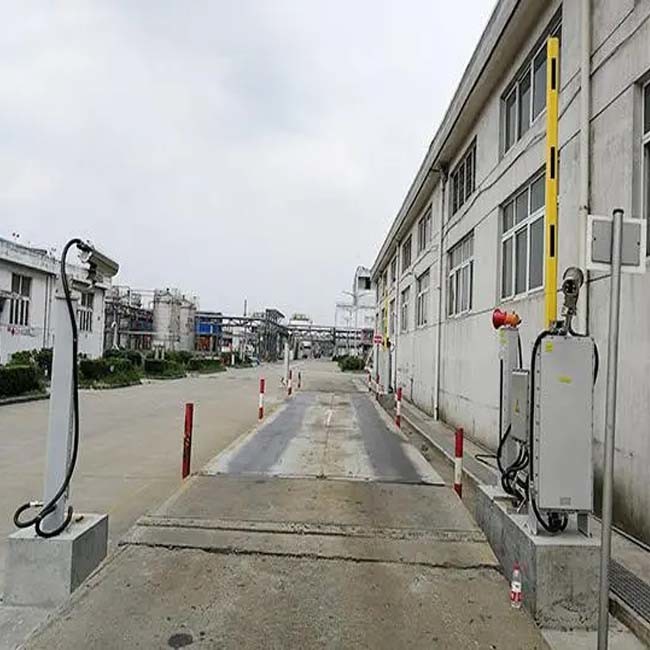

Our weighing system is fully integrated with various features to enhance its functionality. These features include:

  • Video surveillance
  • Large-screen display
  • Automatic vehicle identification
  • Intelligent voice
  • Traffic light barrier control
  • Infrared grating positioning
  • Host computer systems.

This integration has been designed to support automatic data collection, reliable measurement, tare weight determination, guidance, processing and control. The comprehensive system offers improved levels of automation and informatization, as well as significant reduction in the workload and shortcomings of manual handling operations.

During operations, as a vehicle is driven onto the platform, its weight gets transferred through the load-bearing structure based on the impact of gravity. This leads to deformation in the elastic material of the sensors, causing an unbalanced state in the strain gauge bridge attached to the elastic material.

The output signal that is obtained from the strain gauge bridge is directly proportional to the vehicle's weight. Subsequently, the signal is amplified with the help of a linear amplifier, which is then converted to a digital signal through an A/D converter. This digital signal is then processed through a processor and displayed as the final weight data.



Features:



Automatic vehicle identification, intelligent voice and digital display



Technical Parameters:



Data Collection and Weighing Process Improvement

The system is designed to perform data collection automatically, which significantly reduces manual intervention. This feature ensures the accuracy and real-time nature of data collection.

The system also accelerates weighing processes which enhances production efficiency. Moreover, weighing procedures are standardized to close loopholes and effectively prevent cheating. Therefore, the weighing process becomes more reliable and transparent.

Centralized Management and Cost Reduction

The centralized management of truck scales allows a single person to manage multiple scales. This, in turn, reduces the number of scale operators and lightens the burden on the company. It also helps enhance security, as centralized installation of equipment facilitates management and prevents human sabotage.

The installation of a self-service man-machine interaction system replaces the weighbridge office, saving construction costs. This system makes it easier for drivers to interact with the weighing system.

Remote Card Reading and Customizable Features

The system enables remote card reading, which allows card reading during vehicle movement. Ceramic RFID cards with anti-tampering features can eliminate cheating through card swapping or license plate manipulation. Moreover, it enhances the management of weighing vehicles, achieving seamless integration between the vehicle and the card.

The system's additional features are customizable based on enterprise requirements. This feature enables seamless integration with other systems, including production systems, resulting in a more efficient and effective workflow.

Another benefit is that scale operators can work remotely, achieving unattended operation of the truck scales and avoiding direct contact with the drivers. This feature improves the working environment for scale operators and enhances the overall operation of the system.



Applications:



Improved Weighing with Electronic Truck Scales
Logistics Industry

In the logistics industry, it is important for logistics centers to accurately weigh incoming and outgoing goods. This can be achieved through the use of electronic truck scales, which are fast and accurate. By using electronic truck scales, logistics centers can improve their efficiency and reduce the time it takes for weighing.


Freight Industry

Freight companies need to weigh goods during loading and unloading. The use of electronic truck scales simplifies the process and reduces the workload for workers. Electronic truck scales also improve the accuracy of the weighing, making it easier for freight companies to charge customers correctly.


Coal Industry

In the coal industry, it is crucial for coal enterprises to weigh coal. The use of electronic truck scales enables efficient and accurate weighing, ensuring profitability. By using electronic truck scales, coal companies can avoid the costs of overweighing or underweighing, which can result in lost revenue.


Building Materials Industry

Companies in the building materials industry transport large quantities of materials on a daily basis. To accurately measure the weight of these transported materials, electronic truck scales should be utilized. Not only do electronic truck scales improve efficiency, but they also reduce labor and resource costs by streamlining the weighing process.


Chemical Industry

The chemical industry often deals with sensitive and expensive raw materials that require precise measurements. The use of electronic truck scales in weighing these chemicals avoids human errors and enhances production efficiency. By using electronic truck scales, chemical companies can prevent costly mistakes and ensure accurate measurements for their production processes.
