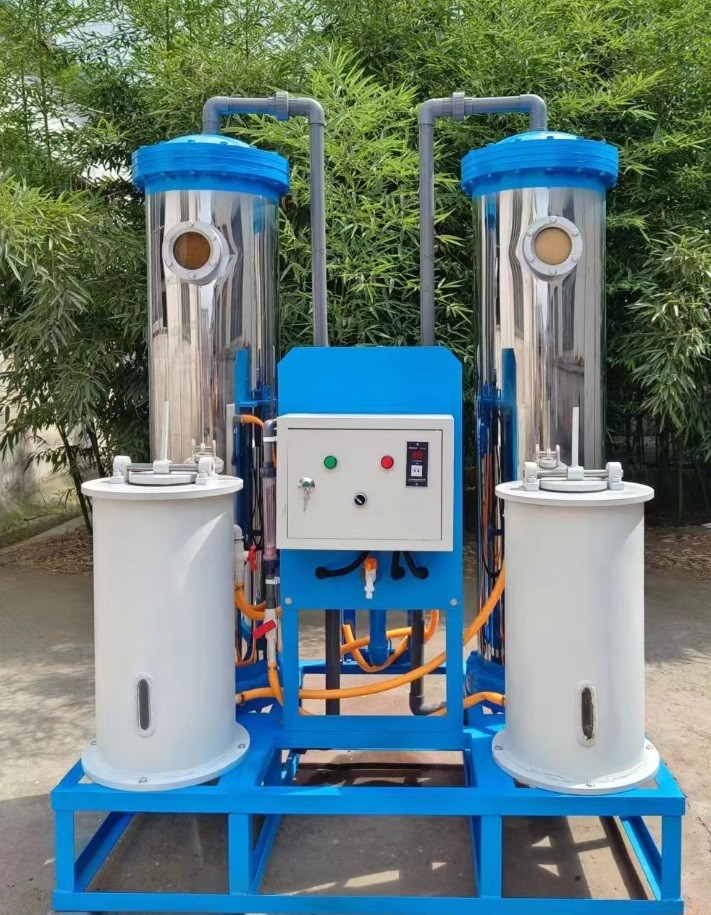

Continuous Water Softener 2 Tank System By Tonglida , Water Softening Equipment

Product Description:

The fully automatic water softener comes equipped with a comprehensive automatic control system and can be customized as a single-tank or dual-tank system based on user requirements. The system operates automatically, with one tank in use while the other serves as a backup. Once the operating tank reaches the set water production capacity, it automatically goes into regeneration mode, and the backup tank takes over the operation. The entire softening system operates in a fully automatic mode.

The operation of the softening tank includes several process stages, and they are running, backwashing, brine suction, ion exchange, forward flushing, and standby. The raw water flows through the resin tank containing ion exchange resin, and the exchangeable ions Na+ in the resin undergo ion exchange with the cations (Ca2+, Mg2+) in the water. This results in the water hardness of the softener outlet being at most 0.03mmol/L. The ion exchange resin tank comes equipped with an automatic control valve.

The controller automatically initiates the regeneration process when the system reaches the set flow rate. The main steps involved in the regeneration process are as follows:

1. Backwashing: Water is directed upward through the bottom distributor to flush and loosen the resin bed, simultaneously removing accumulated suspended particles from the resin surface.
2. Brine Suction Regeneration: Saturated brine solution is injected into the resin tank through the brine injector after dilution to a concentration of 5-8%. The brine solution flows downward through the deactivated resin bed, regenerating the resin and restoring its original exchange capacity.
3. Exchange: The exchange process comprises two steps. In the first step, after the regeneration liquid is injected, there is still some regeneration brine in the upper space of the resin tank that has not participated in the regeneration process. Clean water with the same flow rate as the regeneration liquid is used to thoroughly regenerate the uninvolved brine through the resin bed. This step is called exchange. In the second step, the regeneration waste liquid in the resin pores is displaced from the resin bed.
4. Forward Flushing: The purpose of forward flushing is to completely remove the residual regeneration waste liquid from the resin bed and clean it until the water meets the required standards.

Features:

The automation level of our system is top-notch, ensuring reliable and efficient performance. Our technology guarantees stable water quality, which is a fundamental aspect of any water management system.

In addition to this, our systems are designed to maximize efficiency, with every feature optimized to ensure minimal waste and maximum output. Our equipment also utilizes advanced technology, resulting in low energy consumption, minimizing the environmental impact and reducing operating costs.

Our commitment to sustainability and long-term viability is evident throughout our design and implementation process. Trust us to deliver cutting-edge water management solutions that are dependable, efficient, and economically sound.

Technical Parameters:

The water softening system features an automatic control mechanism that ensures simple and reliable operation. This allows you to easily adjust the system to suit your water softening needs without requiring technical expertise.

The system is highly adaptable and capable of softening water with high hardness up to ≤15mmol/L to a residual hardness of ≤0.03mmol/L in a single pass. This makes it ideal for use in a wide range of applications.

The system has a short regeneration time, low resin consumption, low salt consumption, stable water quality, and low operating costs. This makes it a cost-effective solution for managing hard water in your home or business.

The water softening system has a compact and rational design that allows it to be easily integrated into your existing water supply. It is also lightweight and requires only a small footprint, making it easy to install in a wide range of environments.

The complete machine is delivered from the factory, and installation is simple. You only need to connect the inlet and outlet pipes and power supply to start producing soft water. This makes it an ideal solution for those who need a simple and cost-effective way to manage hard water in their homes or businesses.

Applications:

The automatic water softener is a valuable tool for treating circulating makeup water in a variety of applications, including steam boilers, hot water boilers, heat exchangers, steam condensers, air conditioning systems, and direct-fired equipment and systems. With the use of this technology, water can be significantly purified in order to meet various industry needs.

Moreover, water softeners are not only used in industrial settings but also for domestic water treatment. The technology is known to be very effective in treating water hardness, resulting in better drinking water and cleansing agents in households.

Water softeners find their use in multiple sectors like food and beverage processing, electroplating, pharmaceuticals, chemical manufacturing, textile and printing, electronics, and various industrial applications that require purified water. The ability of water softeners to reduce the hardness of water makes it an ideal pre-treatment method for desalination systems.

The use of single-stage or multi-stage water softeners ensures that the hardness of water is significantly reduced, making it free of impurities. Overall, the automatic water softener is a versatile and useful technology that can revolutionize the way we treat and use water in various industrial and domestic settings.
