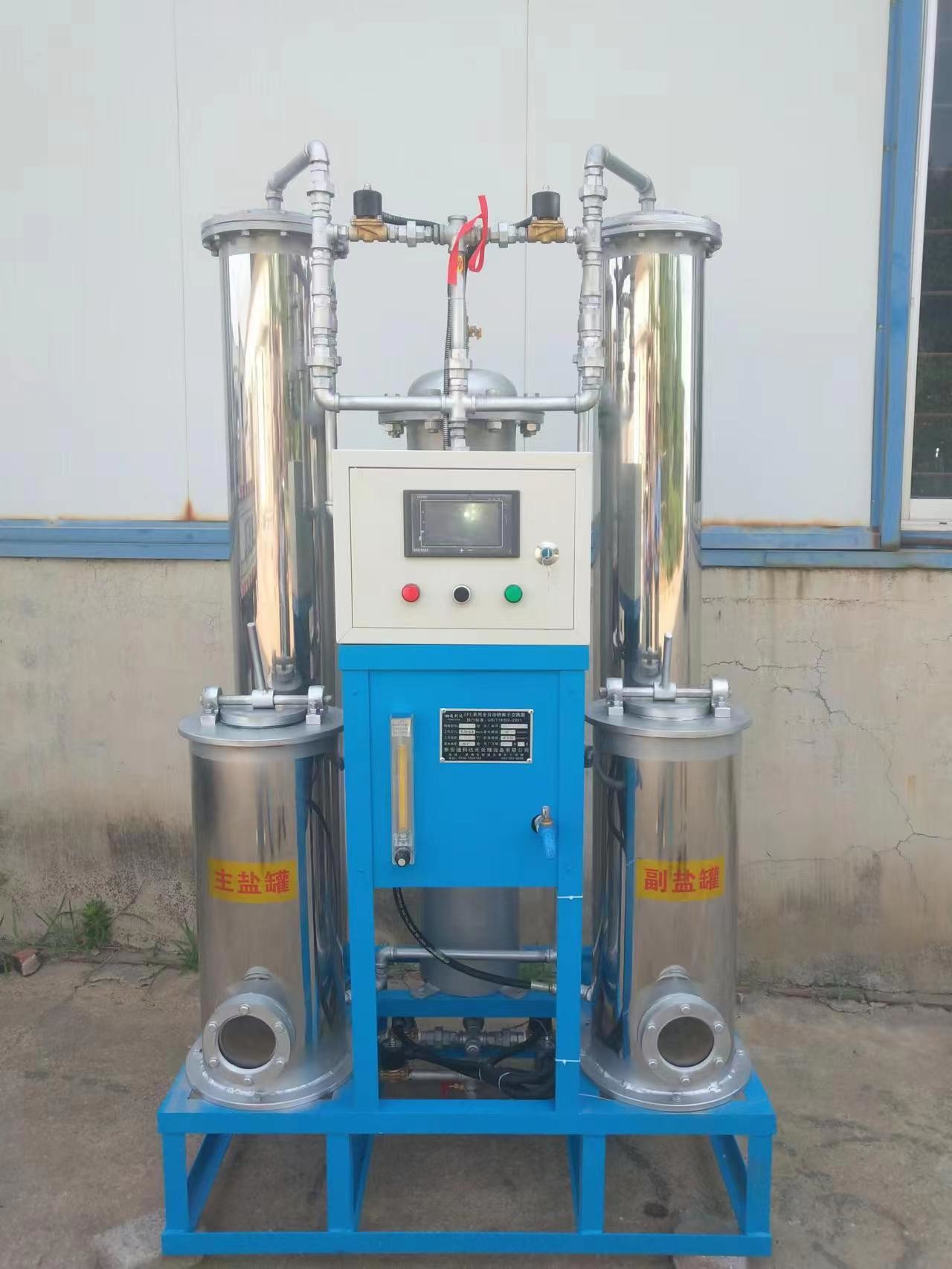

Tonglida Stainless Steel Single Tank Water Softening Equipment Automatic 1-100T/H

Place of Origin Taian, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T-100T
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Automation Level, Stable Water Quality, High Efficiency, Low Energy Consumption, Low Operating Costs. Product Specifications 1-100T/H
Product Information Automatic Water Softening Equipment - Dual-Tank, Single-Tank, Continuous Water Production Application Fields Industrial Boilers, Central Air Conditioning Systems, Heat Exchangers, Hotels, Restaurants, Food And Chemical Industries, Laundry And Dyeing, Medical And Sanitation, Etc.
Origin Taian, Shandong Materials Fiberglass Reinforced Plastic (FRP), Stainless Steel, Carbon Steel
Brand Tonglida
High Light

water softening equipment automatic

,

single tank water softening equipment

,

automatic water conditioning equipment
Leave a Message
Product Description





Product Description:

The fully automatic water softener comes equipped with a comprehensive automatic control system, which can be customized as a single or dual tank system, based on the user's requirements. In the case of a dual tank system, when one tank reaches its set water production capacity, it automatically goes into regeneration mode while the other takes over the operation. The entire softening system works in a fully automatic mode, including critical stages like running, backwashing, brine suction, ion exchange, forward flushing, and standby.

All the raw water flows through the resin tank containing an ion exchange resin, with an automatic control valve. The Na+ ions in the resin exchange with the cations (Ca2+, Mg2+) in the water. This results in an outlet of softener water having a water hardness ≤0.03mmol/L. When the set flow rate is achieved, the controller will automatically initiate the regeneration process, consisting of the following steps:

  1. Backwashing: To flush and remove accumulated suspended particles, water is directed upward through the bottom distributor into the resin bed.
  2. Brine Suction Regeneration: The saturated brine solution is injected through the brine injector into the resin tank after diluting it to 5-8% concentration. The brine solution then flows downward, regenerating the resin and restoring its original exchange capacity.
  3. Exchange: This step happens in two stages. In the first, some regeneration brine remains in the upper space of the resin tank after the regeneration liquid injection. To ensure efficient use of this brine, clean water with the same flow rate is used to regenerate the residual brine through the resin bed. In the second step, the regeneration waste liquid in the resin pores is displaced from the bed.
  4. Forward Flushing: This step aims to remove the remaining regeneration waste liquid completely from the resin bed and clean it until the water conforms to the required standards.

Project Name   Unit 1T/H 10T/H 20T/H 30T/H 40T/H 50T/H 60T/H 80T/H 100T/H

Inlet pressure mpa 0.15-0.25
Water production T/H 0.8-1.2 9-11 18-22 27-33 35-45 45-55 55-65 70-90 90-110
Raw water turbidity O ≤2
Raw water hardness mmol/L ≤15
Residual hardness of soft water mmol/L ≤0.03
Self-consumption water rate % 4
Power supply   Single-phase electricity 50HZ 220V
Diameter of exchange column Stainless steel head mm     ∅650 ∅750 ∅900 ∅900 ∅1000 ∅1200 ∅1400
Ordinary head mm ∅160 ∅420 ∅640 ∅760 ∅890 ∅900 ∅1000 ∅1180 ∅1400
Resin tank height   mm   1800
Inlet and outlet water pipeline Solenoid valve mm DN15   DN65 DN65 DN80 DN80 DN100 DN125 DN150
Valve body mm DN20
Flow meter   L/H 60 160 400 600 1000 1000 2000 2000 2500
Resin filling capacity Solenoid valve KG
Total weight of equipment   KG
Salt tank size Self-processing mm 225*650 410*650 640*750 640*750 700*850 760*800 760*800 890*800
  Purchase from outside       800L 1000L 1500 2000



Features:

High Automation Level

The automation level of our system is top-notch, ensuring that all tasks are completed with precision and consistency. Our system can monitor and adjust itself to optimize performance and reduce the need for human intervention. This feature not only increases efficiency but also improves productivity.

Stable Water Quality

We understand the importance of water quality to our customers. Our system is designed to provide stable water quality, ensuring that the water you use meets your desired standards throughout the day. Our water quality monitoring system continuously checks and adjusts the water to maintain consistency and reliability. You can trust our system to deliver high-quality water every time.

High Efficiency

Our system is engineered for maximum efficiency. From system design to operation, the focus is on achieving high productivity with minimal waste. Our state-of-the-art technology allows for efficient water usage and energy conservation without compromising capacity and performance. This efficiency translates to increased productivity, cost savings, and environmental sustainability.

Low Energy Consumption

Our system is designed to reduce energy consumption to the minimum possible. Our engineers ensure that the energy required to power the system is optimized, using only what is necessary to maintain functionality. This feature ensures that operating costs and carbon footprints are kept low while providing reliable performance.

Low Operating Costs

Our system is designed to minimize operating costs effectively. Our engineers work tirelessly to ensure that each aspect of the system is optimized for maximum efficiency, reducing waste and maintenance costs. Our system also requires minimal manual intervention, reducing labor costs significantly. Our solution provides the best value for our customers by maximizing productivity while minimizing costs.



Technical Parameters:

Automatic control is made simple and reliable, allowing for easy operation.

With strong adaptability, our system is capable of softening even the hardest water with a hardness level of ≤15mmol/L to residual hardness levels of ≤0.03mmol/L in a single pass.

Our systems are designed for efficiency, boasting short regeneration times, low resin and salt consumption, stable water quality, and low operating costs.

The system itself is lightweight and compact with a rational design, requiring a small footprint.

Our complete machine is delivered from the factory, and installation is made simple for you. All that is required is the connection of the inlet and outlet pipes and power supply to start water production.



Applications:

The Versatile Use of Automatic Water Softener

The Automatic Water Softener is a highly efficient device that can be used in various applications such as circulating makeup water in steam boilers, hot water boilers, heat exchangers, and air conditioning systems. It can also be used in other direct-fired equipment and systems. The main aim of using the Automatic Water Softener is to prevent the water from causing damage to the equipment by minimizing the hardness of the water used.

The device is not only used in industrial settings but it is also employed in several domestic applications. It finds its use in sectors such as food, electroplating, pharmaceuticals, chemicals, printing and dyeing, textiles, electronics, as well as pre-treatment for desalination systems.

The Automatic Water Softener can easily reduce the hardness of the produced water, regardless of whether it is a single-stage or multi-stage water softener. This results in significantly better performance and improved longevity of the equipment.
