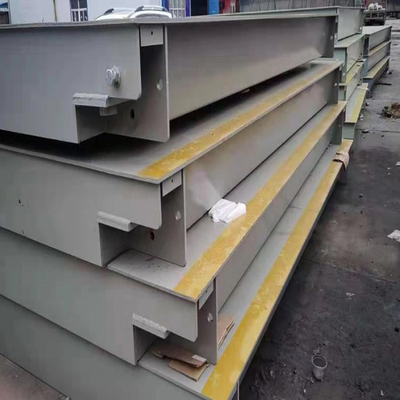

4m~35m Length Scale Automatic Vehicle Electronic Weighbridge With Intelligent Voice And Digital Display

Product Description:

An electronic scale, also known as an electronic weighbridge, is a professional equipment used for weighing based on the principle of strain gauge measurement. It is a large-scale weighing tool. Our company mainly offers electronic scales, mobile electronic scales, and electronic truck scales.

This system integrates video surveillance, large-screen display, automatic vehicle identification, intelligent voice, traffic light barrier control, infrared grating positioning, and host computer systems. It achieves automatic and reliable collection of measurement data, automatic determination of tare weight, automatic guidance, automatic processing, and automatic control throughout the weighing process. This greatly reduces the disadvantages and workload associated with manual operations, while enhancing the system's level of informatization and automation.

During operation, when a vehicle drives onto the platform, the weight of the vehicle is transferred to the weighing sensors through the load-bearing structure under the influence of gravity. This causes deformation in the elastic material of the sensors, resulting in an unbalanced state in the strain gauge bridge attached to the elastic material. The output signal from the strain gauge bridge is proportional to the weight of the vehicle. The signal is then amplified by a linear amplifier, converted into a digital signal through an A/D converter, processed by a processor, and displayed as weight data.

Application Range:

1. Logistics Industry: Logistics centers need to weigh incoming and outgoing goods. The use of electronic truck scales enables fast and accurate weighing, improving efficiency.
2. Freight Industry: Freight companies need to weigh goods during loading and unloading. The use of electronic truck scales simplifies the process and reduces workload.
3. Coal Industry: Coal enterprises need to weigh coal. The use of electronic truck scales enables efficient and accurate weighing, ensuring profitability.
4. Building Materials Industry: Building materials companies need to weigh transported materials. The use of electronic truck scales improves efficiency and reduces labor and resource costs.
5. Chemical Industry: Chemical raw materials require weighing equipment. The use of electronic truck scales avoids human errors and enhances production efficiency.

Equipment Features:

● Data collection is done automatically by the system, reducing manual intervention and improving the accuracy and real-time nature of data collection.

● Accelerates weighing processes, enhancing production efficiency.

● Standardizes weighing procedures, closing loopholes and effectively preventing cheating.

● Centralized management of truck scales allows one person to manage multiple scales, reducing the number of scale operators and lightening the burden on the company.

● Installation of self-service man-machine interaction system replaces the weighbridge office, saving construction costs. Centralized installation of equipment facilitates management and prevents human sabotage.

● Scale operators can work remotely, achieving unattended operation of the truck scales and avoiding direct contact between drivers and scale operators, thus improving the working environment for scale operators.

● Enables remote card reading, allowing card reading during vehicle movement. Ceramic RFID cards with anti-tampering features can eliminate cheating through card swapping or license plate manipulation.

● Enhances management of weighing vehicles, achieving seamless integration between the vehicle and the card.

● Customizable additional features based on enterprise requirements, allowing seamless integration with production systems and other systems.
