0-90degrees / 0-180degrees Container Flipper Machine Carbon Steel Single Flip Double Flip

Place of Origin Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number Suitable for 20-foot containers
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Available In Single And Double Lanes Product Material Carbon Steel
Type Single Flip - Double Flip Flip Angle 0-90 Degrees - 0-180 Degrees
Customization Customization Is Supported Application Fields It Is Mainly Used In Ports, Docks, Railway Stations, Coal Yards, Grain Depots, And Other Places For Automatic Loading And Unloading Of Various Bulk Materials.
Brand Tonglida Origin Taian, Shandong
High Light

180degrees container flipper machine

,

container flipper machine carbon steel

,

90degrees container flipper equipment
Leave a Message
Product Description

Product Description:

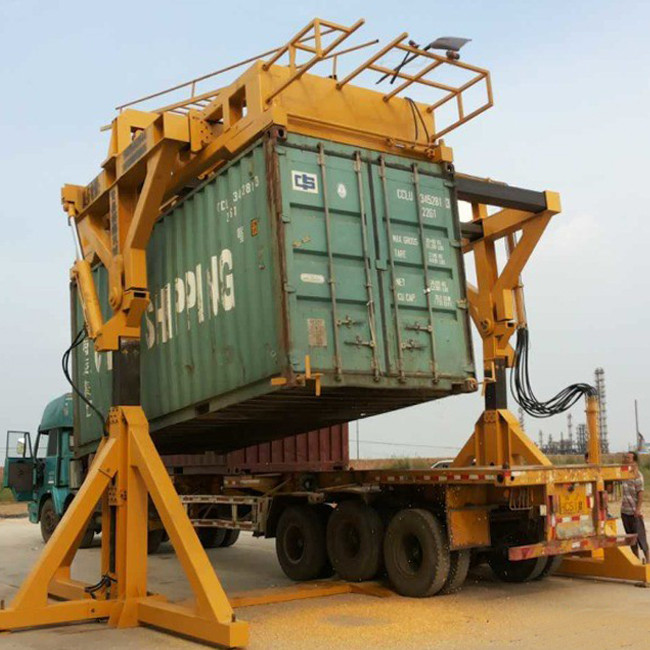

The mobile container flipper machine is specifically designed and manufactured for domestic bulk cargo container loading and unloading. It is a specialized container flipper machine with the advantages of fast loading speed and low operating costs. This flipper machine is the first in the country to feature a fully hydraulic steel structure and is available in both single and double lane configurations. With just one operator, it can achieve 90° and 180° container flips and can be moved to any designated location on a truck-mounted container. It is an ideal equipment for flipping 20-foot containers.

This equipment requires a flat, hardened, and pothole-free surface for operation. It is suitable for bulk cargo loading and unloading of containers in grain depots, ports, railway stations, and freight yards. It is an ideal tool with excellent quality and affordable price.



Main Product Parameters:

Model Container Size Tilting Angle Load Capacity Box Support Force Box Retracting Force Number of Tilting Oil Cylinders Maximum System Pressure Electric Motor Platform Height Loading Height Operating Form Main Machine Size Machine Weight

TLD

20feet

0-90degrees

 30-40tons 1270KN 700KN 12 pcs 30MPa 18.5KW 6200/6525mm 6579/6904mm Automatic/Manual 7400*3600*2800 14tons

TLD

20feet

0-180degrees

 30-40tons 1270KN 700KN 12 pcs 30MPa 18.5KW 6200/6525mm 6579/6904mm Automatic/Manual 7400*3600*2800 16tons



Product Applications:



1.Port Logistics:
In port terminals, the container flipper machine is an essential loading and unloading equipment. It efficiently and quickly unloads containers onto the ground or loads them onto vessels, thereby improving logistics efficiency and reducing handling costs.



2.Railway Transportation:
In railway transportation, the container flipper machine can be used for container loading and unloading. It enhances transportation efficiency and safety while reducing handling costs.



3.Coal, Cement, and other Material Handling:
The container flipper machine can also be applied to the loading and unloading of other materials such as coal and cement, which are heavy in weight. Due to its compact structure, ease of use, and high efficiency, it significantly improves handling efficiency.



Product Advantages:



1.Smooth Flipping:
The hydraulic cylinders are controlled by the control lever, ensuring smooth and non-slip flipping without tilting.



2.High Efficiency:
The container flipper machine can quickly invert or rotate containers, allowing for easy and fast loading and unloading of goods at any desired angle.



3.Strong Flexibility:
It can adapt to containers of different models and sizes, providing high flexibility in handling various types of containers.



4.Remote Control:
The equipment can be operated using remote control, allowing the operator to stay away from the flipping platform during operation.
